Aluminum anodizing DC rectifier used in anodic oxidation of aluminum, this technical process is actually a process by mean of electrolytic aluminum surface to make aluminum profile or aluminum alloy profile forming alumina oxidization film. Our rectifiers also have imitation gold electroplating power supply, pulse electroplating rectifiers, high-frequency electro plating power supply, DC voltage stabilization power supply, battery charging power supply, DC motor test power supply, experimental measurement power supply, pulse superposition hard oxidation DC rectifier, special usage silicon AC to DC rectifier, electric furnace heating power supply, high power (electrolysis, oxidation) power supply and some matched power supply equipment etc..

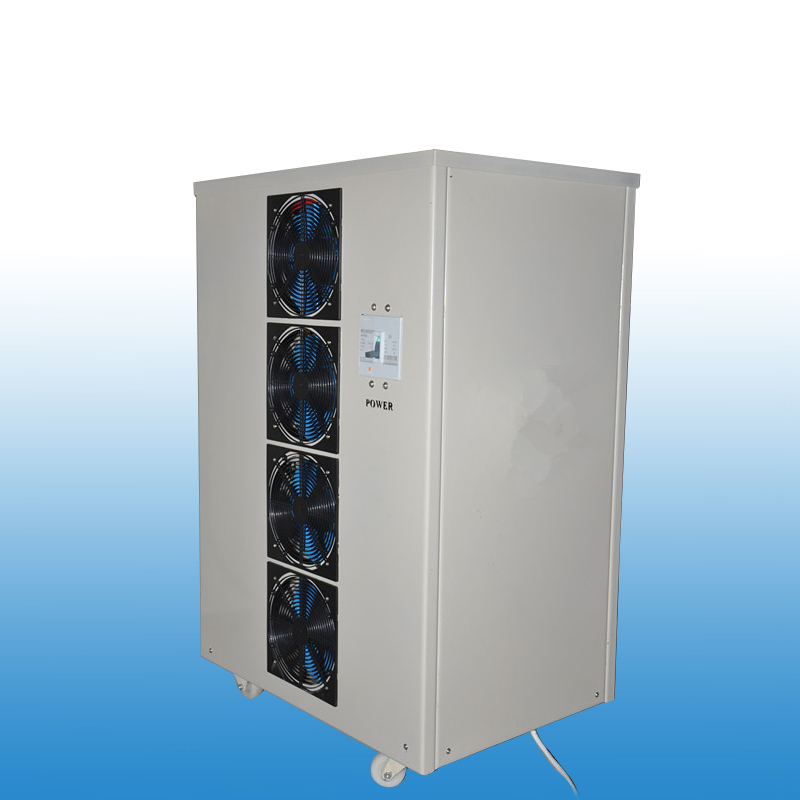

anodizing dc rectifier
Aluminum anodizing DC rectifier usage:
Aluminum anodizing DC rectifiers applied to aluminum profile (aluminum and aluminum alloy and so on) anodic oxidation treatment.
Aluminum anodizing DC rectifier features:
Has the advantages of small volume, light weight, high efficiency, high control precision, etc..;
Pulse width modulation power introduced international advanced technology, using IGBT power module of the international brand;
Complete protection function, has voltage stabilization & current stabilization working mode, and filtration, over-voltage, overheating, short circuit, phase missing protection functions and soft start.
The power supply adopts special design control system, internal structure of anti acid, anti alkali design, which greatly increase the service life of the product.
Plating rectifier specification and parameter: |
|
Plating rectifier Input voltage |
3 phase220VAC 380V/415V/440V/480VAC/600VAC 50-60Hz, |
Output voltage |
6V/12V/15V/18V/24V/36V/48V optional or according to customers’ request |
Output current |
0-10000A (Random optional) |
Voltage stability |
≤1% |
Current stability |
≤1% |
Ripple factor |
1%-2% |
Efficiency |
≥90% |
Stabilization mode |
Current stabilization/Voltage stabilization (Switchable easily) |
Adjustment range |
Voltage/Current from 0-100% continuously adjustable within rated range |
Cooling system |
Air cooling/Water cooling/Oil cooling |
Control method |
Manual/PLC |
| control operation | Remote control box/front panel control/HMI touch screen |
Display contents |
Voltage meter/Current meter/Working/Over temp/Error, etc.. |
Protection method |
Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection lack of phase etc.. |
Operating temperature |
-20-50℃ |
Ambient temperature |
-30-65℃ |
Ambient humidity |
≤90% |
Working loading |
Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
