Entirely machine structure closed and sealed water cooling, excellent anti-corrosion, anti-rust, anti-moisture effect, which greatly extended service life. Temperature air-cooled structure, anti-corrosion, which makes it easy to install, and easy to maintenance.
Rectifier supplier power supply significant electricity power saving, details data is can save 10% -30% energy, also the efficiency can reach 85% and even more.
Small size volume, light weight, simple operation, installation and maintenance is very convenient.
Rectifier supplier complete protection functions, with phase lack, over-current, over-voltage, short circuit, over-heat protection.
Current, voltage and operating time digital display.
Working time control, fast protection and automatic shutdown feature.
Constant voltage, constant current control options, high value power factor, small pollution to power grid, without interference.
Case material: anti-acid, corrosion-resistant, aluminum alloy body production, can significantly increase power life in harsh environments.

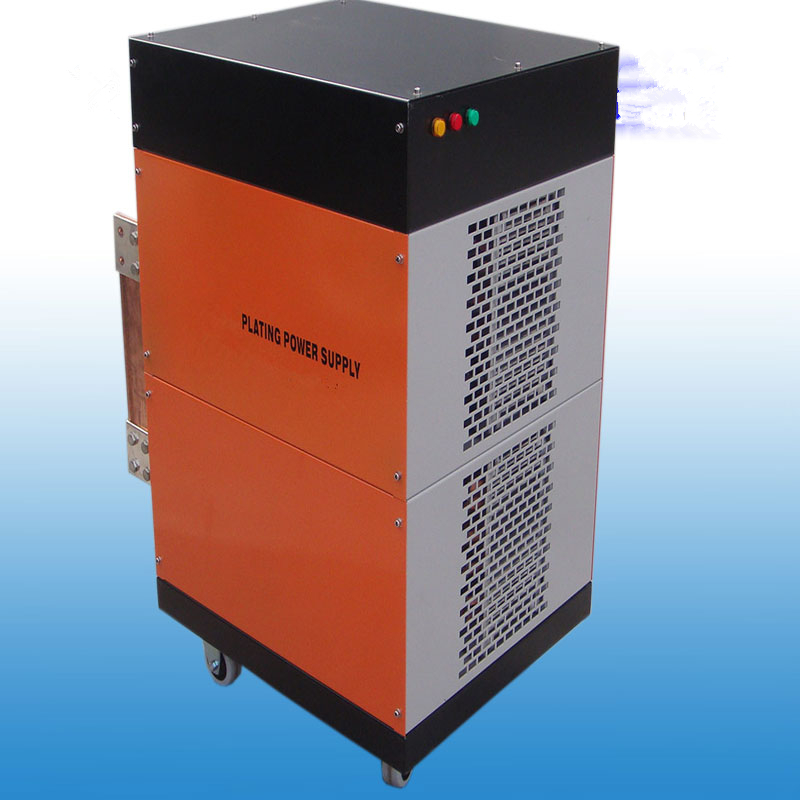

Plating rectifier specification and parameter: |
|
Plating rectifier Input voltage |
3 phase220VAC 380V/415V/440V/480VAC/600VAC 50-60Hz, |
Output voltage |
6V/12V/15V/18V/24V/36V/48V optional or according to customers’ request |
Output current |
0-4000A (Random optional) |
Voltage stability |
≤1% |
Current stability |
≤1% |
Ripple factor |
1%-2% |
Efficiency |
≥90% |
Stabilization mode |
Current stabilization/Voltage stabilization (Switchable easily) |
Adjustment range |
Voltage/Current from 0-100% continuously adjustable within rated range |
Cooling system |
Air cooling/Water cooling/Oil cooling |
Control method |
Manual/PLC |
control operation | Remote control box/front panel control/HMI touch screen |
Display contents |
Voltage meter/Current meter/Working/Over temp/Error, etc.. |
Protection method |
Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection lack of phase etc.. |
Operating temperature |
-20-50℃ |
Ambient temperature |
-30-65℃ |
Ambient humidity |
≤90% |
Working loading |
Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
