input voltage single phase 220VAC  3phase 380V AC,415VAC,440VAC,480VAC
frequency:50HZ/60HZ
output current:0-200A
output voltage:0-±20V,0-±24V
Efficiency:＞90%

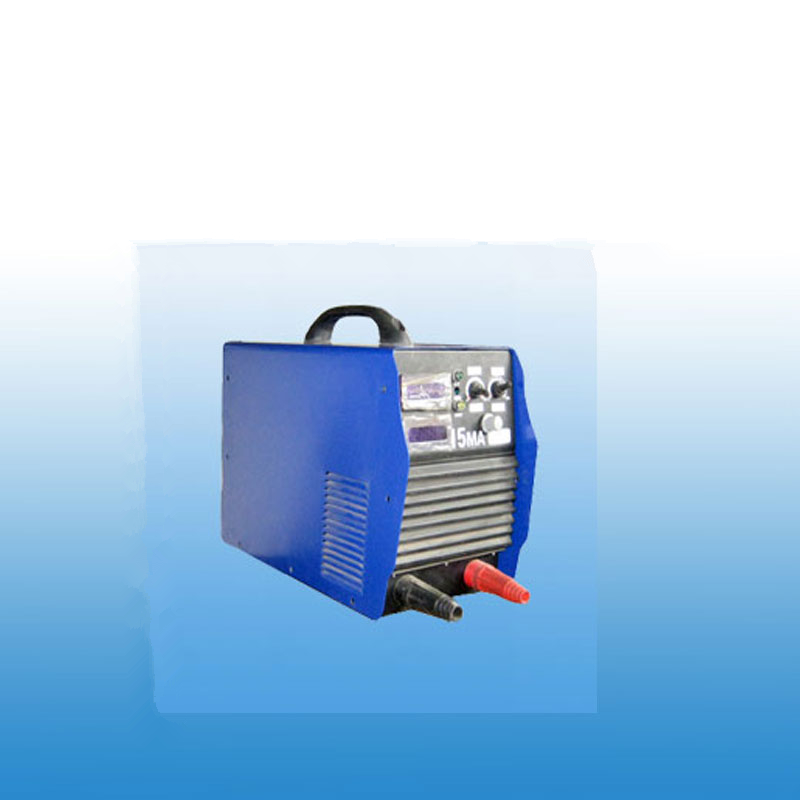

The brush electroplating repair power suppliers adopt advanced  High power soft switching IGBT resonant converter technology.High frequency, high power, wide pulse output.Suitable for metal brush plating; Electrolysis; Oxidation; Polishing; Motor bearing repair.

technical feature

1. Equipment is simple, do not need plating tank, easy to carry, applicable to the field and repair at the locale.
2. Technology is simple, flexible operation, do not need use a lot of protection material at the plated parts
3. Operation process, the cathode and anode have relative motion, it allows the use of high current density, it is better than trough plating using the current density of several times to dozens times
4. High metal content in the plating solution, so fast plating product (5 ~ 10 times faster than tank plating
5. Solution variety, wide application range.Has more than one hundred kinds of different USES of solution, applicable to the needs of different industries
6. There are different types of plating pen, and is equipped with different shapes and sizes of insoluble anode, All sorts of different geometric shape and structure of complex parts can be repaired
7. Generally do not need mechanical processing after plating
8. A set of equipment can brush plating on a variety of materials, can be dozens of plating coating.For composite coating is very convenient, and can be achieved by laminated structure big thickness of coating

technical use

1 repair  The defects of tank plating products

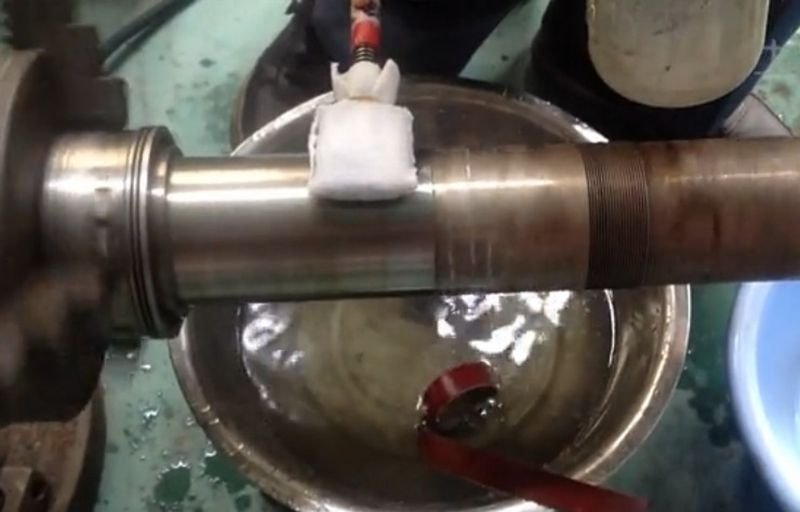

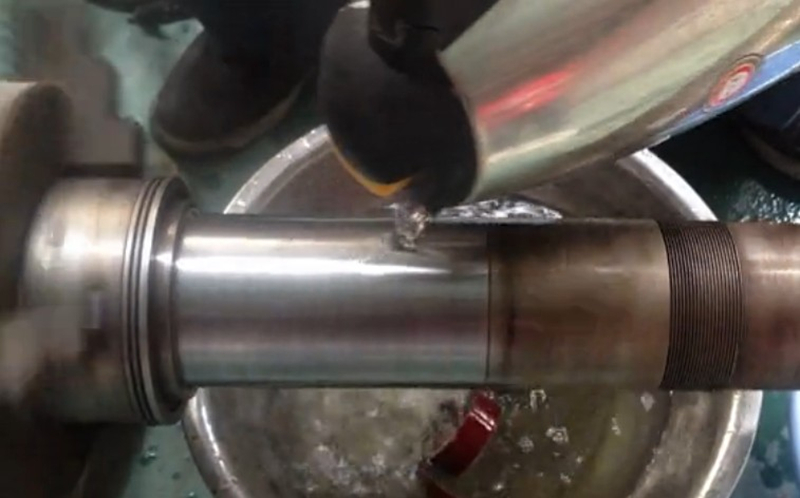

2 Repair processing out-of-tolerance pieces and parts of surface wear, restore its size accuracy and geometric accuracy
3 Repair the scratches on the surface of the parts, trench, pit, pitting corrosion
4 Strengthen the product surface, make its have higher mechanical properties and good physical and chemical properties
5 The preparation of protective layer on the surface of the parts, such as for surface corrosion resistance, high temperature resistant, resistant to oxidation, oxidation on aluminum and aluminum alloy surface treatment
6 Complete the work which hard to finish the work by the tank plating,such as

• special or big parts can not be tank plating

• Repair of large equipment on the locale place.

• only need plate parts of device

• Parts immersion plating tank can lead to another part of the damage or pollution solution
