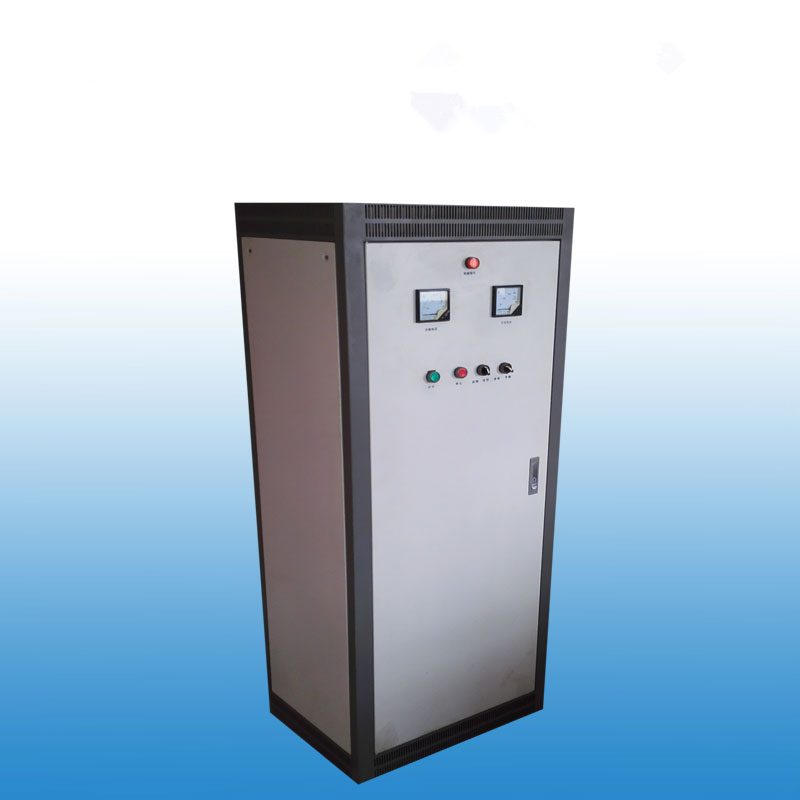

Model:KLC-（ high frequency battery charge rectifier  ）

General Specification:
High frequency IGBT control technology
Voltage controlled automatic charge
Usage as a dc power source
Single phase and 3 phase wide power range
High efficiency
Electronic protections

type

KLC-

INPUT

         voltage

3 phase 380V AC-480VAC±10％,50HZ/60HZ

OUTPUT

output voltage

0-1000V DC adjustable

Output current

0-50A,100A,150A,200A,2000A  adjustable

Voltage/Current
  Adjustment range

From 0-100％continuously adjustable

Constant voltage/constant current  control accuracy

≤1.0％

Voltage regulation

±1%

Ripple

＜5%

Efficiency

＞90%

GENERAL

Control

Digital remote control box or Switch on front panel

protections

Short circuit,over current,over temperature,output voltage low/high,dc ground missing warring,over load

Battery charge mode

Automatic charge
Float charge:2-2.45V/cell(depends battery type)

Display

LCD/LED

Isolation

Input-output:2000V,input-Ground:500V

ENVIRONMENT

Operating Temperature

 -15-45℃

Storage temperature

-30-65℃

Relative humidity

0-90%

Cooling

Forced air cooling with Fan

Protection Level

IP20

Acoustic noise

＜55 dBA

Standards

Harmonized standards

EN 62040-1,EN61204(LVD),EN61204-3 EMC
